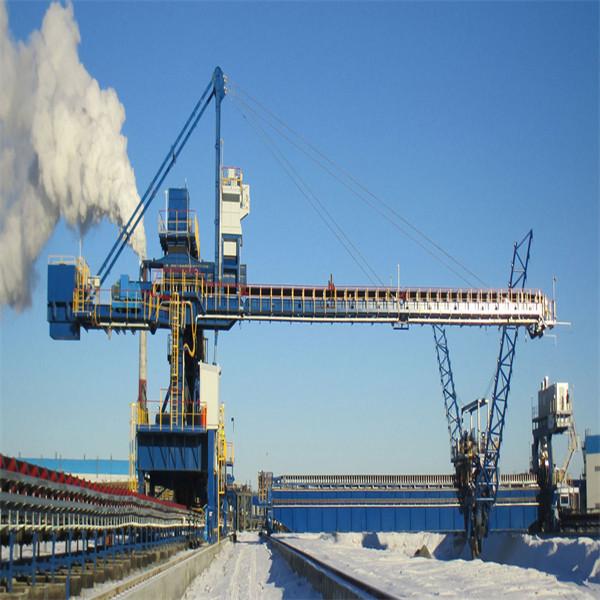

Heavy-duty side cantilever stacker for bulk material handling
The side cantilever stacker can stack operation to the different material pile, and to stack a variety of materials, meet different stacking processes requirements. The side cantilever stacker was designed as compact, electric-hydraulic driven with automatic operating function without manpower.
The side cantilever stacker is mainly composed of a traveling mechanism, luffing mechanism, cantilever frame, cantilever belt conveyor, feeding system, control room, electrical control system, and other components.
The side cantilever stacker is mainly used for stacking limestone, sandstone, raw coal, and other bulk materials. It is mainly used for storing and blending materials in the stockyard. It is mainly applied for metallurgy, mining, building materials, chemical industry, cement, and other industries.
The side cantilever stacker has the advantages of simple structure, reliable performance, easy operation, convenient maintenance, and safe operation.
Table of equipment parameters
| description | parameter | unit |
| material | limestone,sandstone,raw coke | |
| density | 0.8~2.2 | t/m3 |
| granularity | <70 | mm |
| moisture | <2 | % |
| stacking capacity | 100~5000 | t/h |
| rail span | 4~8 | m |
| length of cantilever | 15~40 | m |
| width of belt | 500~1800 | mm |
NOTICES
The customer shall provide the following information when placing order:
- the character of bulk material;
- Stockyard information；
- Process flow chart；
- Power supply；
- Communication and control requirements.
